DANIFLOW

Overall dimensions

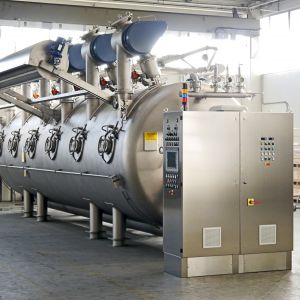

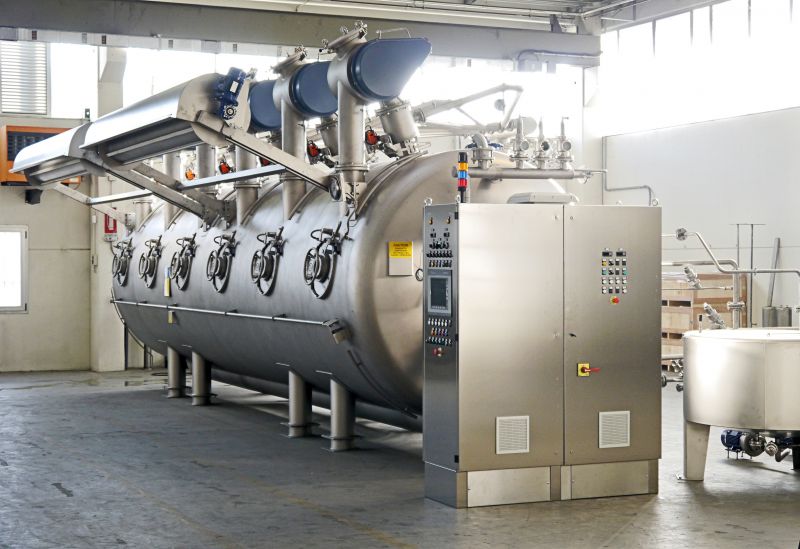

DANIFLOW is a rope dyeing machine developed and manufactured by Danitech; the main features are: operational simplicity, versatility and low consumption of water, steam and energy.
DANIFLOW contains high-level technological solutions that allow excellent dyeing results to be obtained while guaranteeing reduced consumptions.
Available with different load capacities with chambers of 200 Kg, 250 Kg, 300 Kg and 400 Kg and in versions for knits, woven, terry and upholstery fabrics.

PERFORMACES

Jersey 100% cotton
Bleaching / Reactive dyeing / Washing / Soaping
Loading and unloading times included



  Water Steam Energy Process time
Light shade 20/22 1,6 0,11 4 h 10 min
Medium shade 25/26 1,8 0,12 4 h 30 min
Dark shade 28/32 2,1 0,13 4 h 50 min

TECHNICAL FEATURES

INTELLIGENT WASHING SYSTEM
The IWS system is a set of innovative technological and hydraulic solutions that allow DANIFLOW, through precise control of the washing phases, an optimal result maintaining extremely low water consumption.

LIQUOR MIXING SYSTEM
The mixing of the bath contained in the machine is one of the priority aspects for obtaining a rapid and uniform dyeing; DANIFLOW has a mixing system which, with the usage of an auxiliary circulation pump, guarantees, during the introduction phases, a quick dilution of the introduced products.

BATH DISTRIBUTION SYSTEM
The bath distribution system (patent pending) guarantees the same flow rate to each nozzle of the machine. A special diffuser is inserted inside the manifold and allows a perfect division of the flow rates in proportion to the number of nozzles of the machine.

MAIN CIRCULATION PUMP
The in-line pump with elastic transmission joint allows grater mechanical stability, therefore a longer life of the bearings and the mechanical seal. Moreover, thanks to the presence of the elastic coupling, the maintenance of the pump itself is extremely simplified.

VARIABLE FLOW NOZZLE
The variable section nozzle guarantees the possibility of working without any problem a wide range of fabrics, this, together the internal folding system and the shape of the internal basket, makes DANIFLOW an extremely versatile and easy to use machine.

CHEMICALS TANKS
The DANIFLOW machine is supplied, in the standard configuration, with two tanks, each one consists of:
Introduction pump
Level sensor
Filters
Rapid dissolving system for powder products
Recirculation system
Linear and progressive dosing system

SINGLE SUPPORT REEL WITH DOUBLE SEAL
The DANIFLOW is supplied with a single support reel with double mechanical seal which, thanks to the automatic flushing system, guarantees a longer life of its components such as bearing and mechanical seals.

QUICK REEL RUBBERS REPLACEMENT SYSTEM
A system has been created for the reel rubber replacement to facilitate the operation and reduce the maintenance time.

FILTER
The DANIFLOW can be provided with manual cartridge filter or with automatic cleaning filter (FAP).

EXTENDED COUPLING SYSTEM (ECS2 – ECS3)
ECS is an innovative machine coupling system that offers, in addition to the classic combination of two or three machines of the same capacity, the possibility to combine machines with different capacities. The ECS system increases considerably the production versatility of the machines and consequently optimizes the consumptions.
