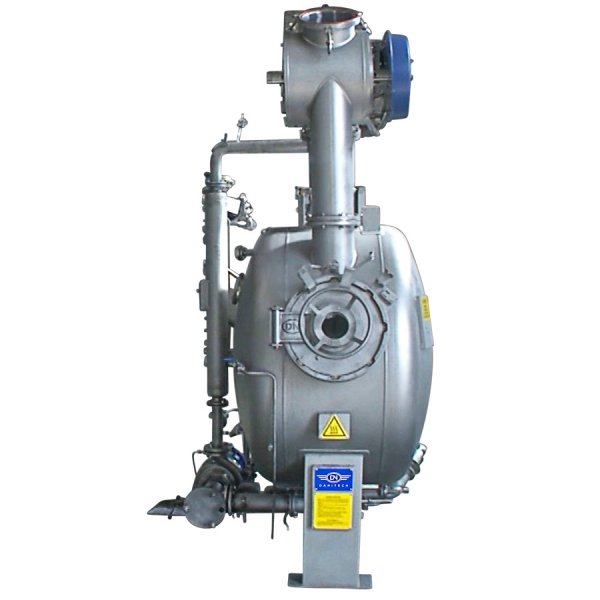

DANISAMPLE

DANISAMPLE is a circular development machine for samples or small productions characterized by a great simplicity of use and extreme versatility, as it can process knitted fabrics, shuttle and terry fabrics made of natural, artificial, or synthetic fibres without any kind of problem.
With a liquor ratio starting from 1 to 4, the DANISAMPLE allow to obtain a perfect reproducibility between the tested recipes and then reproduced on the production machines.
DANISAMPLE, thanks to the delicacy in the rope circulation, can work with more ropes in the same channel, with the possibility to reach charges close to the nominal one even with extremely light articles.

AVAILABLE MODELS

DS HT 25: Sampling machine with 25 Kg capacity
DS HT 50: Sampling machine with 50 Kg capacity
DS HT 100: Sampling machine with 100 Kg capacity

CONFIGURATIONS

DANISAMPLE DSI
Chemical tank
Pressurized flow
Machine filter (Versions 50 – 100)
Microprocessor

OPTIONALS (only for DSI version)
Second chemical tank
IWS – Intelligent Washing System
SEE-DO
ECS 2
Condensate drains and heat exchanger filters
Additional drain valves

DANISAMPLE DSL
Chemical tank
Pressurized nozzle
Machine filter (Versions 50 – 100 Kg)
Microprocessor

TECHNICAL FEATURES

IWS – INTELLIGENT WASHING SYSTEM
The IWS system is a set of innovative technological and hydraulic solutions that allow STUART, through a precise control of the washing phases, an optimal result maintaining extremely low water consumption.

SEE-DO SYSTEM
SEE-DO is a system designed and developed by Danitech for the automatic managemnt of the dyeing and washing phases. It is composed of:
CAP – Colour Analysis Probe: reading probe of the dye in the bath.
PHAP – pH Analysis Probe: pH control probe.
SCP – Salt Concentration Probe: electrolyte control probe.
The SEE-DO together with the IWS ensures very high reproducibility of dyeing processes, reducing process time and consumptions.

VARIABLE FLOW NOZZLE
The variable section nozzle guarantees the possibility of working without any problem a wide range of fabrics, this, together the shape of the internal basket, makes DANISAMPLE an extremely versatile and easy to use machine.

CHEMICALS TANK
The DANISAMPLE machine is supplied, in the standard configuration, with one chemical tank. On request there is the possibility to add the second. Each one consists of:
Introduction pump
Level sensor
Filters
Rapid dissolving system for powder products
Recirculation system
Linear and progressive dosing system

EXTENDED COUPLING SYSTEM (ECS2)
ECS is an innovative machine coupling system that offers the possibility to combine machines with same capacity. The ECS system increases considerably the production versatility of the machines and consequently optimizes the consumptions.
